Egg - shaped Pipe Stoppers UV, UVP and PUV, PUV-F, PUVP and UVL
These pipe stoppers are used to seal the egg-shaped profiles. They are manufactured in two versions. The design UV, PUV and PUV-F, which copies the profile of egg-shaped pipe, is used for smaller pipe profiles.
For larger profiles, the pillow version UVP and PUVP is used. Its advatage is that it is flexible and it can be inserted through a common shaft.
Version UVL is made from light material with good chemical resistance. Small scratches or holes can be repaired. UVL pipe stoppers are made for one size of pipe profile.
Technical parameters
Egg-shaped pipe stoppers UV, UVP
|
Type |
|
UV 30/45 - 40/60 |
UV 50/75 - 60/90 |
UV 70/105 - 90/135 |
UVP 50/75 - 60/90 |
UVP 70/105 - 90/135 |
|
Part-No. |
|
1601 |
1602 |
1603 |
1604 |
1605 |
|
Sealing cross-section |
mm |
300-400 450-600 |
500-600 750-900 |
700-900 1050-1350 |
500-600 750-900 |
700-900 1050-1350 |
|
Operating pressure |
bar |
1 |
1 |
1 |
1 |
1 |
|
Back pressure |
bar |
0,5 |
0,5 |
0,5 |
0,5 |
0,5 |
|
Dimensions (WxHxL) |
mm |
270 x 380 x 800 |
470 x 690 x 1060 |
650 x 960 x 1360 |
700 x 2100 |
1000 x 2500 |
|
Weight |
kg |
12 |
32 |
60 |
23 |
39 |
Egg-shaped test pipe stopper PUV,PUV-F and PUVP
|
Type |
|
PUV 30/45 - 40/60 |
PUV 50/75 - 60/90 |
PUV 70/105 - 90/135 |
PUV 30/45 - 40/60 F |
PUV 50/75 - 60/90 F |
PUV 70/105 - 90/135 F |
PUVP 50/75 - 60/90 |
PUVP 70/105 - 90/135 |
|
Part-No. |
|
1303 |
1301 |
1302 |
1304 |
1305 |
1306 |
1307 |
1308 |
|
Sealing cross-section |
mm |
300-400 450-600 |
500-600 750-900 |
700-900 1050-1350 |
300-400 450-600 |
500-600 750-900 |
700-900 1050-1350 |
500 - 600 750 - 900 |
700-900 1050-1350 |
|
Operating pressure |
bar |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Back pressure |
bar |
0,5 |
0,5 |
0,5 |
0,5 |
0,5 |
0,5 |
0,5 |
0,5 |
|
Dimensions (WxHxL) |
mm |
280 x 410 x 750 |
470 x 690 x 880 |
650 x 960 x 1060 |
270 x 380 x 800 |
470 x 690 x 1060 |
650 x 960 x 1360 |
700 x 2100 |
1000 x 2500 |
|
Weight |
kg |
25 |
51 |
78 |
19 |
51 |
98 |
31 |
48 |
|
Bypass |
1 x 1“ 1 x 2“ |
1 x 1“ 1 x 2,5“ |
1 x 1“ 1 x 2,5“ |
1 x 1“ 1 x 2“ |
2 x 2“ |
2 x 2“ |
2“ |
2“ |

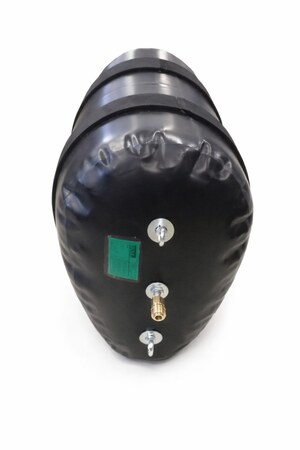

Egg-shaped light pipe stoppers UVL
|
Type |
|
UVL 20/30 |
UVL 25/37,5 |
UVL 30/45 |
UVL 35/52,5 |
UVL 40/60 |
UVL 50/75 |
|
Part-No. |
|
1610 |
1606 |
1607 |
1608 |
1609 |
1612 |
|
Sealing cross-section |
mm |
200-300 |
250-375 |
300-450 |
350-525 |
400-600 |
500-750 |
|
Operating pressure |
bar |
1 |
1 |
1 |
1 |
1 |
1 |
|
Back pressure |
bar |
0,5 |
0,5 |
0,5 |
0,5 |
0,5 |
0,5 |
|
Dimensions (WxHxL) |
mm |
200 x 300 x 600 |
250 x 375 x 700 |
300 x 450 x 700 |
350 x 525 x 800 |
400 x 600 x 800 |
500 x 750 x 900 |
|
Weight |
kg |
2,5 |
3,1 |
3,8 |
4,6 |
5,5 |
6,4 |
