Pakers for T - connections (medusa)

Pakers for T - connections (medusa)

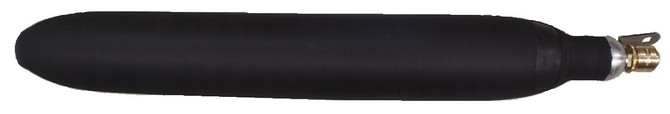

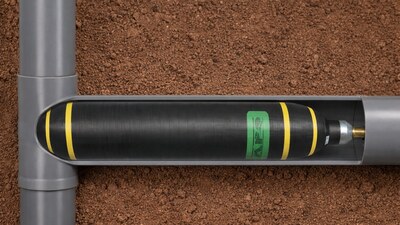

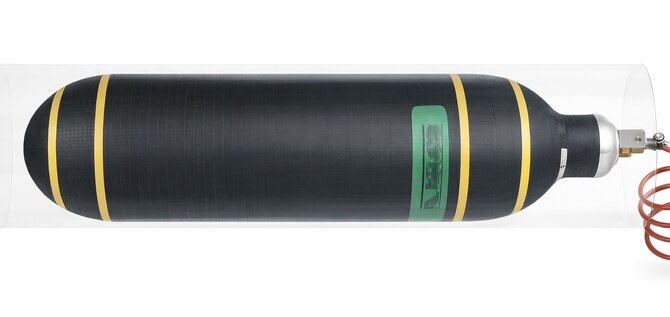

TP packers are suitable for repair of connections in T - connections. They have one end made only from rubberized fabric. It is very flexible.

Product catalog

Product catalog

Technical parameters

Packers for T - connection TP

Type	Part-no.	Pipe diameter	Rubber body diameter	Rubber body length	Total length	Application length in max. diameter	Weight	Operating pressure
		mm	mm	mm	mm	mm	kg	bar
TP 5/7 - 0,6	7801	50 - 70	35	600	650	420	0,5	3
TP 5/7 - 1	7802	50 - 70	35	1000	1050	820	0,7	3
TP 7/10 - 0,6	7803	70 - 100	45	600	660	280	0,9	3
TP 7/10 - 1	7804	70 - 100	45	1000	1060	680	1,2	3
TP 7/10 - 1,5	7805	70 - 100	45	1500	1560	1180	1,6	3
TP 7/10 - 2	7806	70 - 100	45	2000	2060	1680	2	3
TP 10/15 - 0,6	7807	100 - 150	65	600	680	280	1,2	2,5
TP 10/15 - 1	7808	100 - 150	65	1000	1070	680	1,7	2,5
TP 10/15 - 1,5	7809	100 - 150	65	1500	1570	1180	2,3	2,5
TP 10/15 - 2	7810	100 - 150	65	2000	2070	1680	2,9	2,5
TP 15/25 - 0,6	7811	150 - 250	105	600	680	180	3,4	2
TP 15/25 - 1	7812	150 - 250	105	1000	1080	580	4,2	2
TP 15/25 - 1,5	7813	150 - 250	105	1500	1580	1080	5,1	2
TP 15/25 - 2	7814	150 - 250	105	2000	2080	1580	6	2
